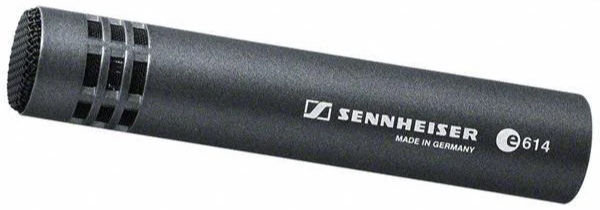

The Sennheiser e614 is a compact supercardioid condenser microphone designed for demanding live sound and recording applications requiring extended frequency response, fast transient response, and high SPL handling. Widely used as a drum overhead microphone, the e614 also excels on percussion, acoustic instruments, brass, woodwinds, and theatre orchestra applications.
Key Features
Compact supercardioid condenser instrument microphone
Extended frequency response from 40Hz–20kHz
Excellent transient response for detailed instrument capture
High SPL handling up to 139dB SPL
Tight supercardioid pickup pattern for reduced stage bleed
Ideal for drum overheads, percussion, and acoustic instruments
Lightweight and compact for tight stage and studio setups
Professional Instrument Microphone
The e614 is commonly used for:
Drum overheads
Percussion setups
Hi-hats and cymbals
Acoustic guitar
Brass and woodwinds
Orchestra and pit band reinforcement
Studio recording and live production
Its detailed condenser capsule captures:
Cymbal shimmer and articulation
Stick attack and transient detail
Natural instrument clarity
Wide frequency reproduction with balanced tonal response
Optimised for Live & Studio Use
Supercardioid pattern helps reduce bleed from surrounding instruments
Compact form factor fits easily into crowded stage setups
Medium sensitivity improves isolation in live environments
Excellent for both live sound reinforcement and recording applications
Technical Specifications
Microphone Type:Pre-polarised condenser
Polar Pattern:Supercardioid
Frequency Response:40Hz – 20kHz
Maximum SPL:139dB SPL
Connector:XLR-3
Phantom Power:12V–52V
Weight:93g
Included Accessories
Microphone clip
Microphone pouch
Why Choose the Sennheiser e614
Detailed condenser sound with excellent transient response
Industry-standard drum overhead microphone
Excellent rejection for live stages and theatre pits
Compact and lightweight design
Versatile microphone for both studio and live production workflows
