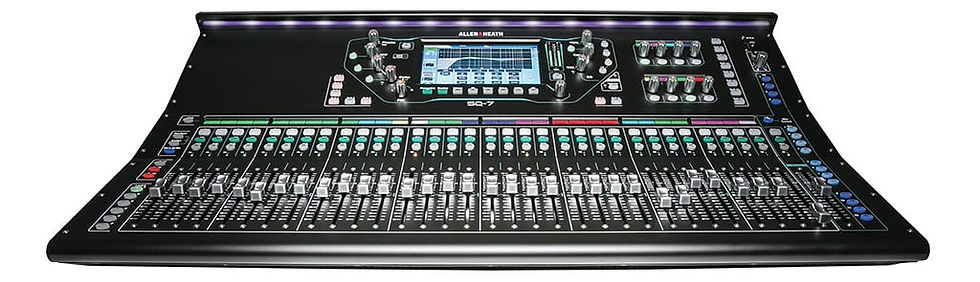

Allen & Heath SQ7

48 Channel 96Khz 33 Fader Digital Mixer

The Allen & Heath SQ-7 is a high-capacity professional digital console designed for demanding live sound, theatre, touring, corporate AV, broadcast, and house of worship applications. Powered by Allen & Heath’s XCVI 96kHz FPGA engine, the SQ-7 delivers ultra-low latency, extensive processing power, and high-resolution audio in a flexible workflow-driven platform.

Audio Engine & Processing

  • Powered by Allen & Heath’s 96kHz XCVI FPGA core

  • Ultra-low latency of less than 0.7ms

  • High-resolution audio processing with variable bit depth

  • Sample-accurate mix coherency throughout the console

  • Designed for high channel counts and intensive processing workloads

Mixing & Channel Capacity

  • 48 input channels

  • 33 motorised faders across 6 layers

  • 12 stereo mixes configurable as auxes or groups

  • 3 stereo matrix outputs

  • 16 onboard microphone preamps

  • Flexible drag-and-drop channel assignment system

Effects & Processing

  • 8 stereo FX engines with dedicated stereo return channels

  • Includes Allen & Heath RackExtra FX library featuring:Reverbs
    Gated reverbs
    Delays
    Modulation effects

  • DEEP Processing ready for boutique compressor and preamp emulations

  • DEEP plugins integrate directly into channels without additional latency

Monitoring & IEM Applications

  • Well suited for in-ear monitoring systems

  • 12 stereo mixes provide extensive monitor flexibility

  • Parametric and graphic EQ available on every mix bus

  • Compact format suitable for touring monitor applications

Recording & USB Audio

  • Integrated SQ-Drive for direct multitrack or stereo recording to USB storage

  • Built-in 32x32 USB audio interface operating at 96kHz

  • Supports:Multitrack recording
    Virtual soundcheck
    Playback integration
    DAW control

  • Core Audio and ASIO compatible

Expansion & Networking

  • Expandable up to 48 microphone inputs using Allen & Heath stage boxes

  • SLink intelligent port supports:AB168
    AR2412
    AR84
    DX168
    Other Allen & Heath digital systems

  • Compatible with Dante and Waves networking via optional expansion cards

  • Can integrate directly with SQ or dLive systems

Automatic Mic Mixing

  • Integrated Advanced Automatic Mic Mixer (AMM)

  • Ideal for:Conferences
    Panel discussions
    Corporate AV
    Broadcast applications

  • Fully integrated without requiring external DSP or plugins

User Interface & Workflow

  • 7-inch capacitive touchscreen

  • Fully customisable channel layouts and colour coding

  • 16 assignable SoftKeys with LCD displays

  • 8 assignable Soft Rotaries for custom workflow control

  • Chromatic Channel Metering system for fast visual level monitoring

  • Dedicated “Channel to All” mix functionality for rapid send management

  • Dedicated physical controls for fast hands-on operation

Construction & Design

  • Heavy-duty all-metal chassis

  • Designed for demanding touring and professional live production environments

  • Integrated LED illumination for improved visibility in low-light conditions

Key Features

  • 96kHz FPGA processing engine

  • 48 input channels

  • 33 faders across 6 layers

  • 12 stereo mixes + LR

  • 3 stereo matrix outputs

  • 8 stereo FX engines with dedicated returns

  • DEEP Processing support

  • 32x32 USB audio interface

  • SQ-Drive USB recording

  • AES output

  • SLink expansion and networking support

  • 16 assignable SoftKeys

  • 8 assignable Soft Rotaries

  • Channel LCD displays

  • Chromatic channel metering
