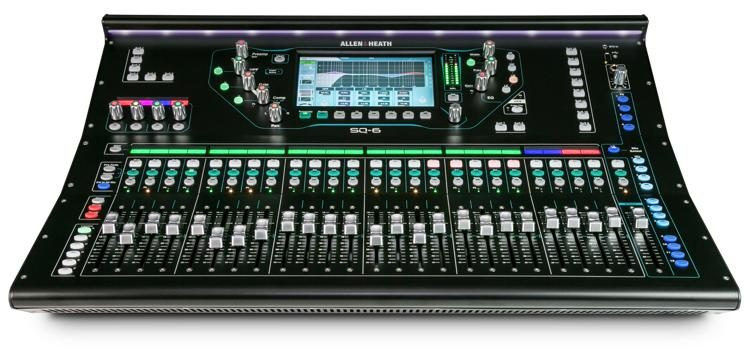

Allen & Heath SQ6

48 Channel 96Khz 25 Fader Digital Mixer

The Allen & Heath SQ-6 is a professional 96kHz digital mixing console designed for live sound, theatre, corporate events, houses of worship, and monitor mixing applications. Powered by Allen & Heath’s XCVI FPGA processing engine, the SQ-6 delivers high-resolution audio, ultra-low latency, and extensive onboard processing in a compact and flexible format.

Audio Engine & Processing

  • Powered by Allen & Heath’s 96kHz XCVI FPGA core

  • Ultra-low latency of less than 0.7ms

  • High-resolution audio processing with variable bit depth

  • Sample-accurate mix coherency across the console

  • Designed to handle high channel counts and intensive processing loads

Mixing & Channel Capacity

  • 48 input channels

  • 25 motorised faders across 6 layers

  • 12 stereo mixes configurable as auxes or groups

  • 3 stereo matrix outputs

  • 16 onboard mic preamps

  • Flexible channel assignment with drag-and-drop workflow

Effects & Processing

  • 8 stereo FX engines with dedicated stereo return channels

  • Includes Allen & Heath RackExtra FX library featuring:Reverbs
    Gated reverbs
    Delays
    Modulation effects

  • DEEP Processing ready for premium compressor and preamp emulations

  • DEEP plugins integrate directly into channels without added latency

Monitoring & IEM Applications

  • Well suited for in-ear monitoring systems

  • 12 stereo mixes provide extensive monitor flexibility

  • Parametric and graphic EQ available on every mix bus

  • Compact and rugged design ideal for touring monitor rigs

Recording & USB Audio

  • Integrated SQ-Drive for direct multitrack or stereo recording to USB

  • Built-in 32x32 USB audio interface operating at 96kHz

  • Supports:Multitrack recording
    Virtual soundcheck
    Playback integration
    DAW control

  • Core Audio and ASIO compatible

Expansion & Networking

  • Expandable up to 48 microphone inputs using Allen & Heath stage boxes

  • SLink intelligent port supports:AB168
    AR2412
    AR84
    DX168
    Other Allen & Heath systems

  • Compatible with Dante and Waves networking via optional expansion cards

  • Can integrate with SQ or dLive systems for larger deployments

Automatic Mic Mixing

  • Integrated Advanced Automatic Mic Mixer (AMM)

  • Ideal for:Conferences
    Panel discussions
    Corporate events
    Broadcast environments

  • No additional DSP or external plugins required

User Interface & Workflow

  • 7-inch high-resolution capacitive touchscreen

  • Illuminated rotary encoders for hands-on control

  • Customisable channel layouts with colour coding and naming

  • Allen & Heath Chromatic metering system for fast visual feedback

  • Dedicated physical controls for key functions

Construction & Design

  • Heavy-duty all-metal chassis

  • Extruded aluminium light bar construction

  • Designed for demanding touring and live production environments

Key Features

  • 96kHz FPGA processing engine

  • 48 input channels

  • 25 faders across 6 layers

  • 12 stereo mixes + LR

  • 3 stereo matrix outputs

  • 8 stereo FX engines with dedicated returns

  • DEEP Processing support

  • 32x32 USB audio interface

  • SQ-Drive USB recording

  • AES output

  • 16 assignable SoftKeys

  • 4 assignable Soft Rotaries

  • Channel LCD displays

  • SLink expansion and networking support
