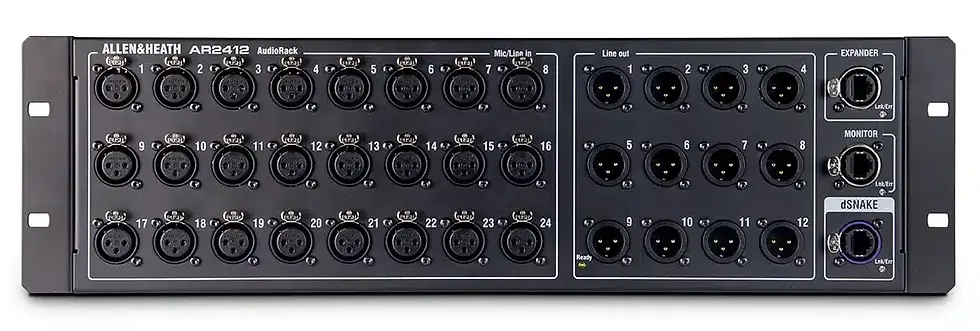

The Allen & Heath AR2412 is a professional remote AudioRack designed for use with Allen & Heath Qu, SQ, Avantis, and AHM systems. Featuring 24 remote-controlled microphone preamps and 12 XLR outputs, the AR2412 provides flexible stage connectivity for live sound, theatre, touring, houses of worship, and installation applications.

Key Features

• 24-input / 12-output remote AudioRack

• Designed for professional live sound and installed audio systems

• Compatible with:Allen & Heath SQ series
  Allen & Heath Qu series
  Allen & Heath Avantis
  Allen & Heath AHM processors


• Operates at 48kHz sample rate

Inputs & Outputs

• 24 remote-controlled microphone preamps

• Up to +60dB gain range

• Switchable -20dB pad for line-level sources

• 12 balanced XLR line outputs

• Relay-protected analogue outputs for added reliability

Expansion & Connectivity

• Connects via a single Cat5 cable

• Supports cable runs up to 100 metres from the mixer

• Expander port for connecting:AR84
  AB168
  Additional compatible expanders


• Monitor port for connection to the Allen & Heath ME Personal Mixing System

Personal Monitoring

• Direct integration with the ME Personal Mixing System

• Allows performers to control their own monitor mixes

• Suitable for:Theatre productions
  Live bands
  Houses of worship
  Corporate productions


Setup & Operation

• Plug-and-play operation with no manual configuration required

• Automatic firmware updates handled directly by the connected mixer

• Fast deployment for touring and live event applications

Construction

• Rugged rackmount design for touring and installation environments

• Includes rack ears for standard 19-inch rack mounting

• Occupies 3RU rack space

Physical Specifications

• Rack size: 3RU

• Maximum Cat5 cable distance: 100m

Applications

• Live sound reinforcement

• Theatre productions

• Touring audio systems

• Corporate AV

• Houses of worship

• Installed venue audio systems
